WBT 0705ag 0705 silver red white Banana amplifiers connector*4pcs Germany Made

ITEM SPECIFICATIONS

Country/Region of Manufacture:Germany
Male/Female:Female (Jack)
Brand:WBT
MPN:Does Not Apply
Quantity:4PCS

DESCRIPTION

WBT - 0705Ag*1 BOX/4PCS Post Express Free shipping to worldwide.

We are a AUTHORIZED FURUTECH DEALER!
Please understand they are all 100% genuine WBT/GERMANY,

We will not answer the question on eBay message again.Thank you for your respect

WBT's flagship terminal with compact design. Equipped with filigree signal conductor made from fine silver and constructed on the nextgen principle. Grants highest conductivity. Fully insulated. CE and IEC conformant. Accepts 4-mm bananas, spades as well as crimped cable ends up to 4 mm² (11 AWG). Outer metal cap with platinum finish.

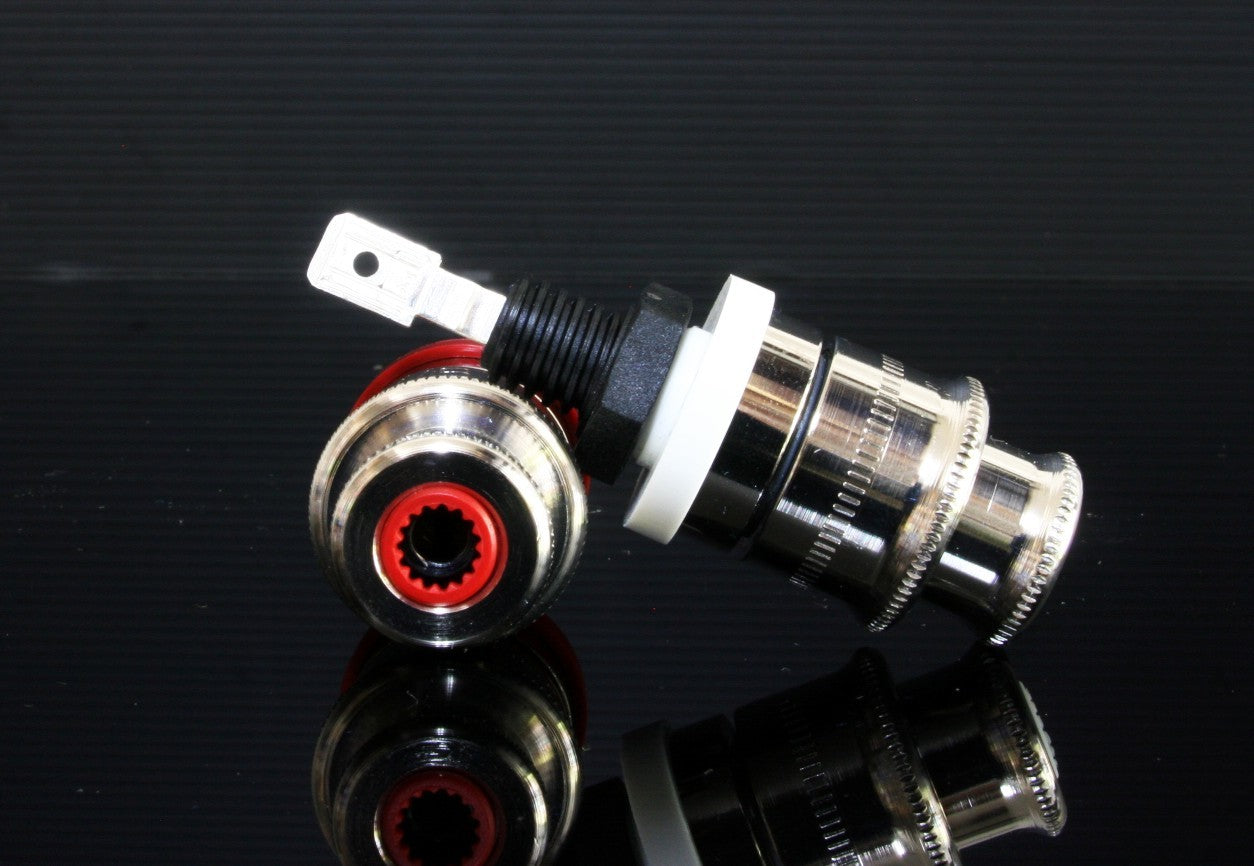

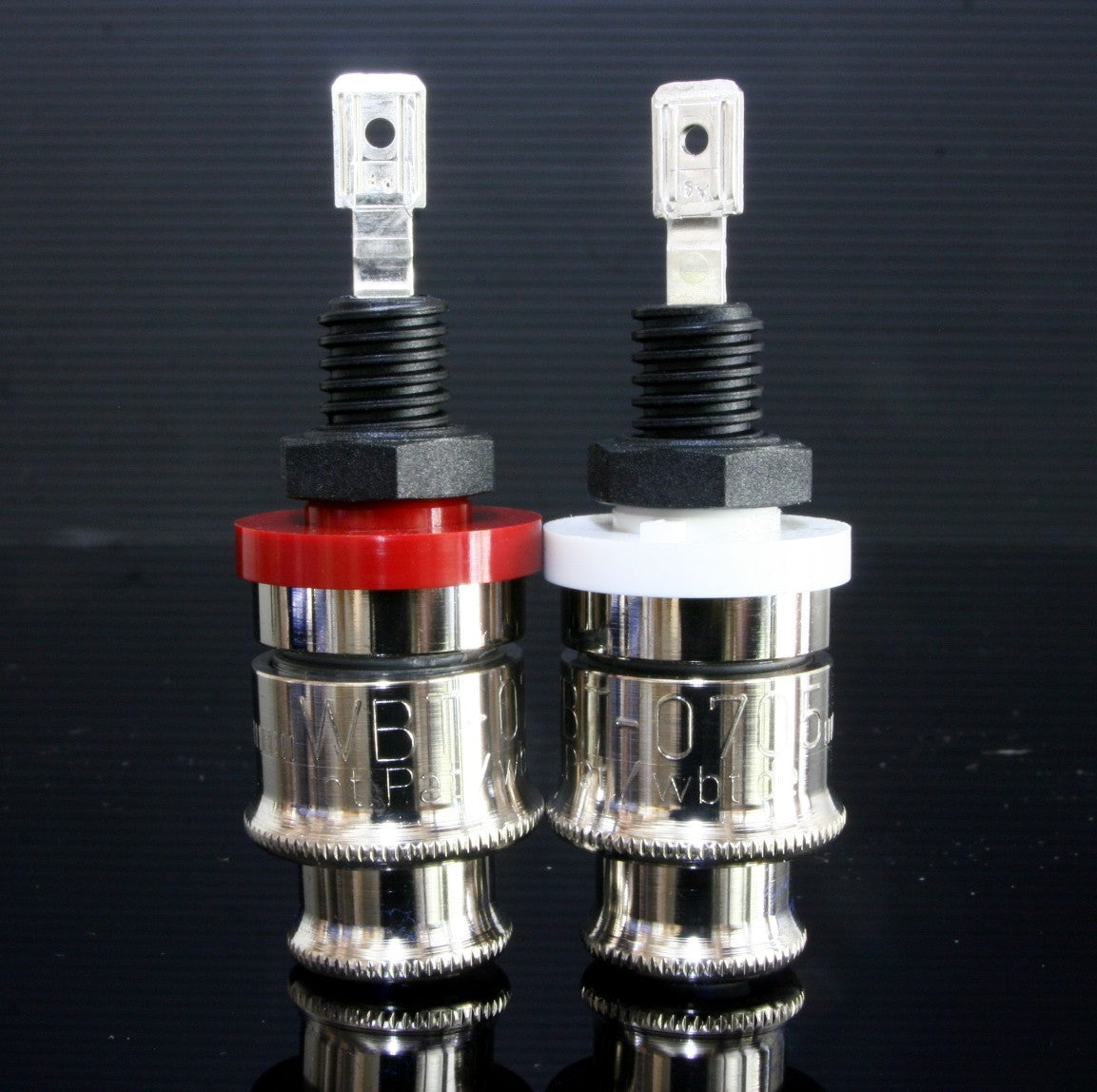

WBT-0705 Ag nextgen Silver Pole Speaker Terminal Binding Posts (Pack 4)

WBT-0705 Ag

nextgen™ Pole Terminal with silver signal conductor, in silver finish

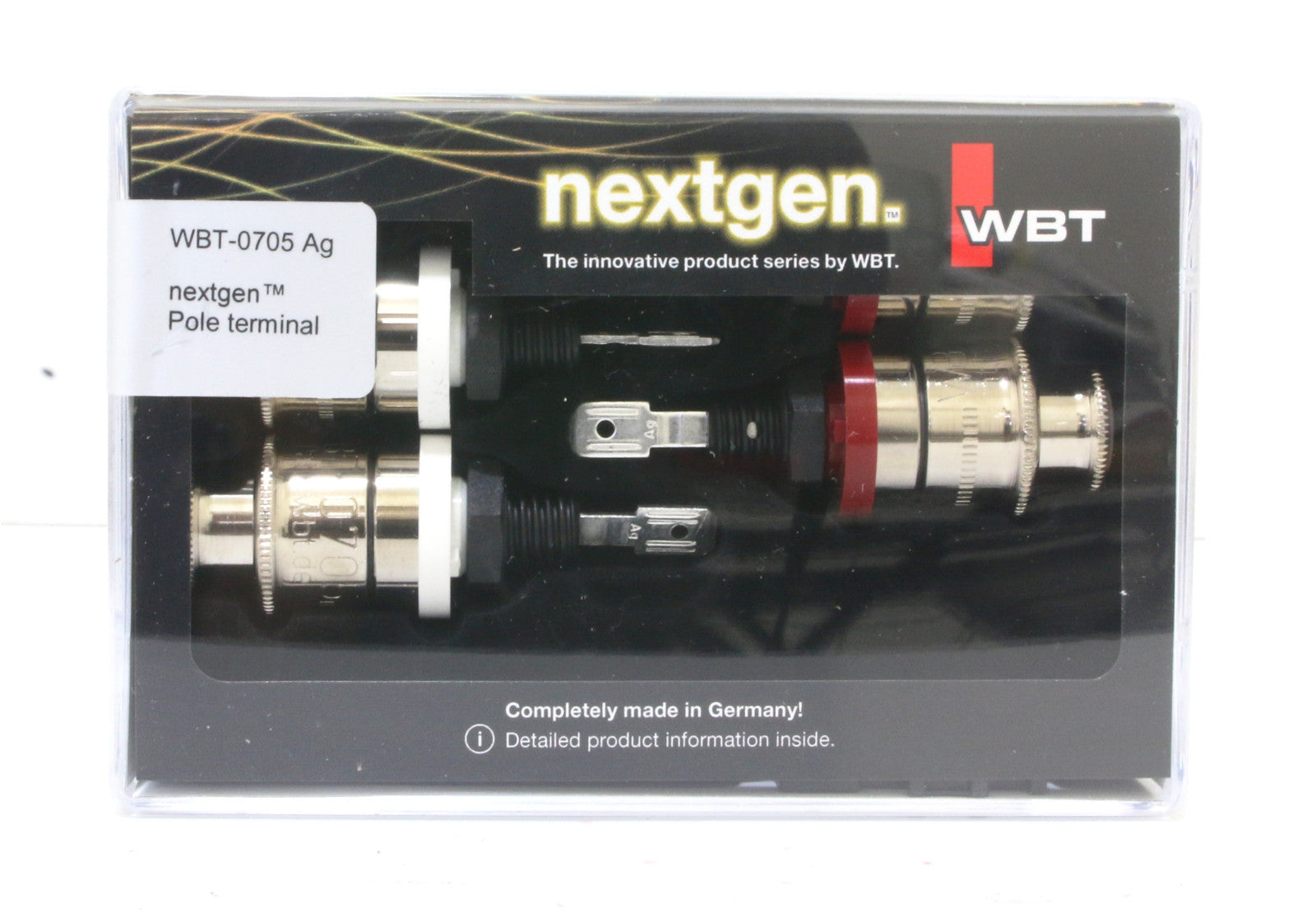

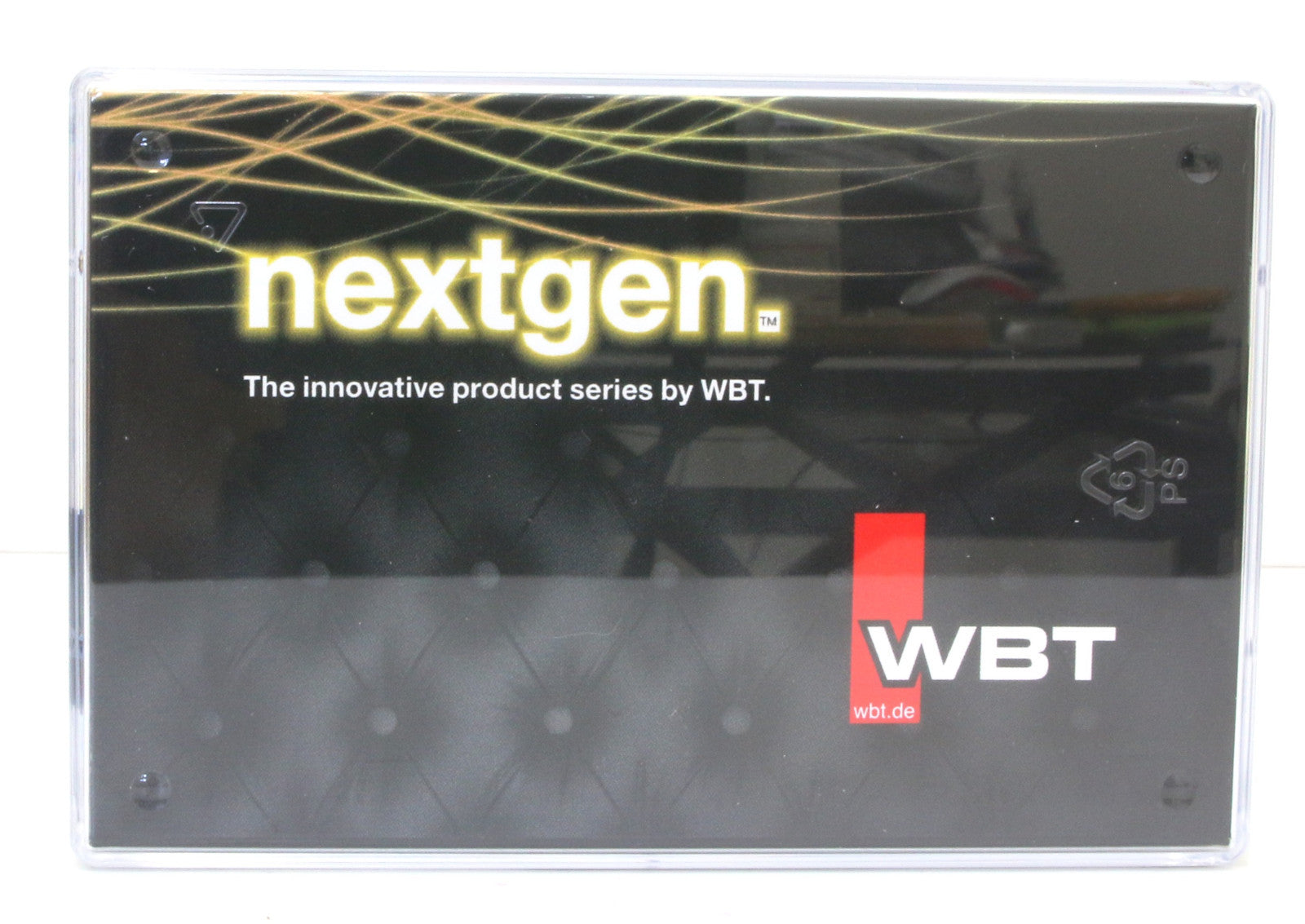

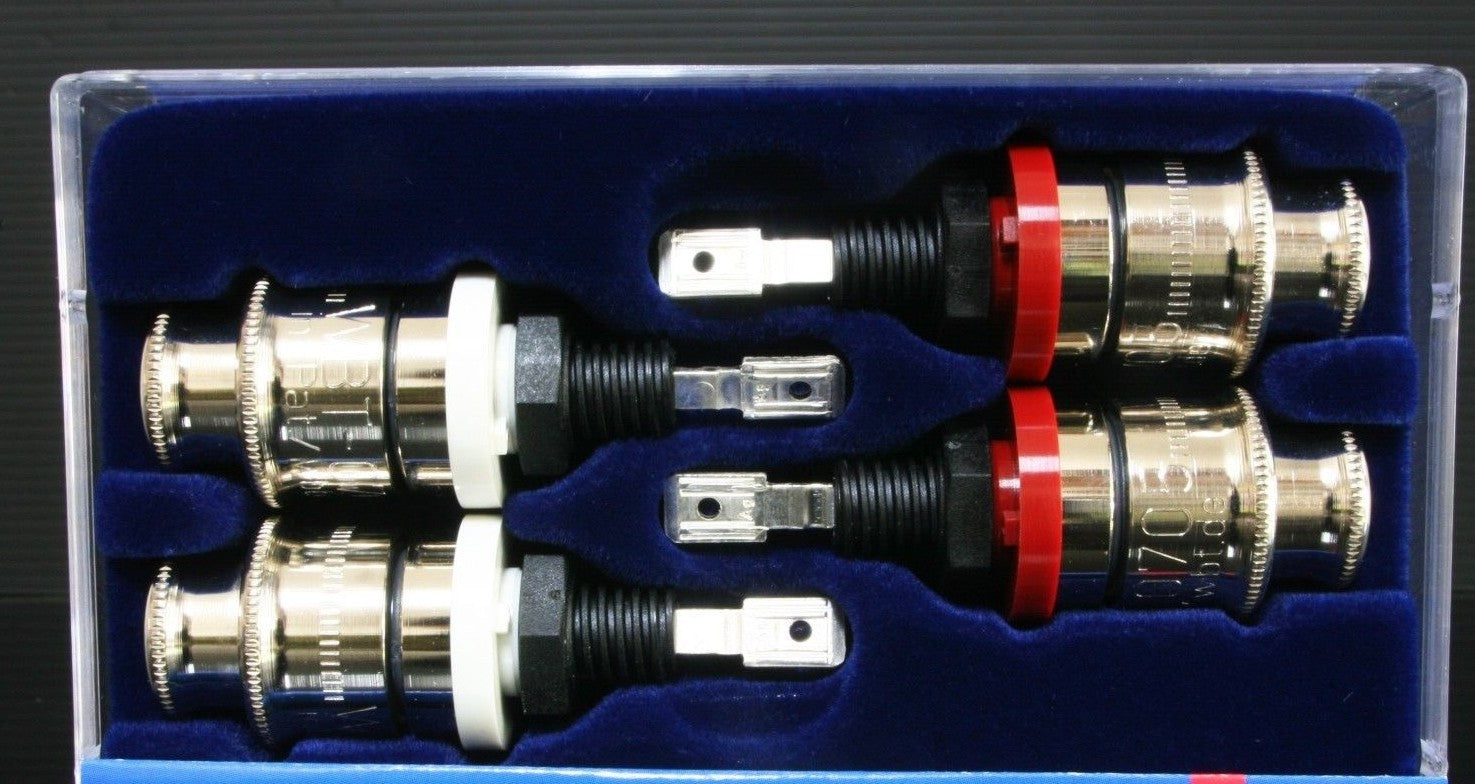

Retail pack of four plugs (two red, two white)

Signal conductor made of high-purity silver

CE and IEC compliant

Casing made of glass fibre and mineral reinforced plastic

Surface protection by means of surface passivation

Max. constant current 30 A, peak current 200 A

Twist-proof mounting

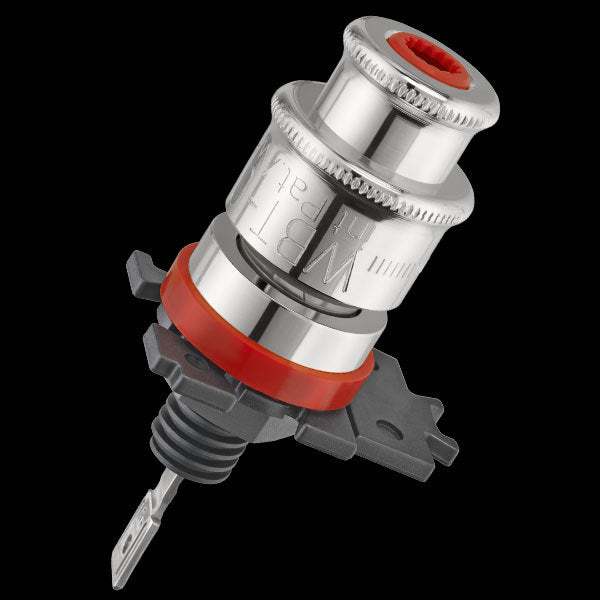

Puzzle plate system

nextgen™ - a new generation of connectors from WBT

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity silver, the best electrical conductor. Silver has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The silver surface is neutralised to prevent oxidation.

Moreover, the soul of the new binding post WBT-0705 Ag is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0705 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection

Solder lugs that can be folded over if needed.
WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).

Mounting

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection.

Conductor cross section (max.):

outside: 4 mm² (11 AWG)

inside: 4 mm² (11 AWG)

Connection technology:

outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping

inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without puzzle plate)

Identification: red, white

Product Details

WBT-0705 Ag nextgen Silver Pole Terminal (Pack of 4)

Part Code:
AS-CO-P-WBT0705AG-4RW

Manufacturer:
WBT

MPN:
WBT-0705 Ag

GTIN:
5060174501425

Unit:
Pack of Four

Packaging:
Box

Brand:
WBT

Country:
Germany

Type:
Stereo

Number of Ends:
4

Termination#1:
Speaker Terminal

This item is BRAND NEW and unused.
